DROPLET STARTER PACK

Ideal for biologists and chemists

Designed for all who wants to start with microfluidic droplets experiments. Includes the EZ Drop chips, full adapted liquid handling solution and accessories.

Key features:

  • Cost effective solution
  • Easy and friendly to use EZ Drop chip
  • No complex connectors
  • From 20 to 100µm droplets and up to 1200 Hz
  • For cell encapsulation or polymer particle formation
Droplet-generation-chip
  • PDMS Droplet chips for flow-focused Water-in-Oil droplets
  • 20µm, 50µm and 100µm markers on the PDMS for easy size monitoring
  • Microscope slide dimensions
  • Fast set-up (less than 1 minute)
  • Suited for 1/32” tubing
droplet-generation-chip
  • Most simple droplet generation kit
  • Highly monodispersed droplets (with CV < 2%)
  • From 15µm to 100µm diameter droplets
  • Up to 1200 Hz
  • Integrated resistance to avoid back-flows
  • Quality monitoring with a QR code for easy trobleshooting

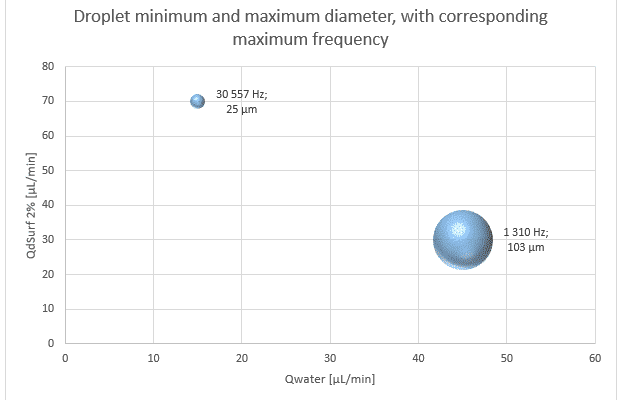

  • Datasheet with frequency-size abacus and phase diagram included
EZ-Droplet-Chip-pattern

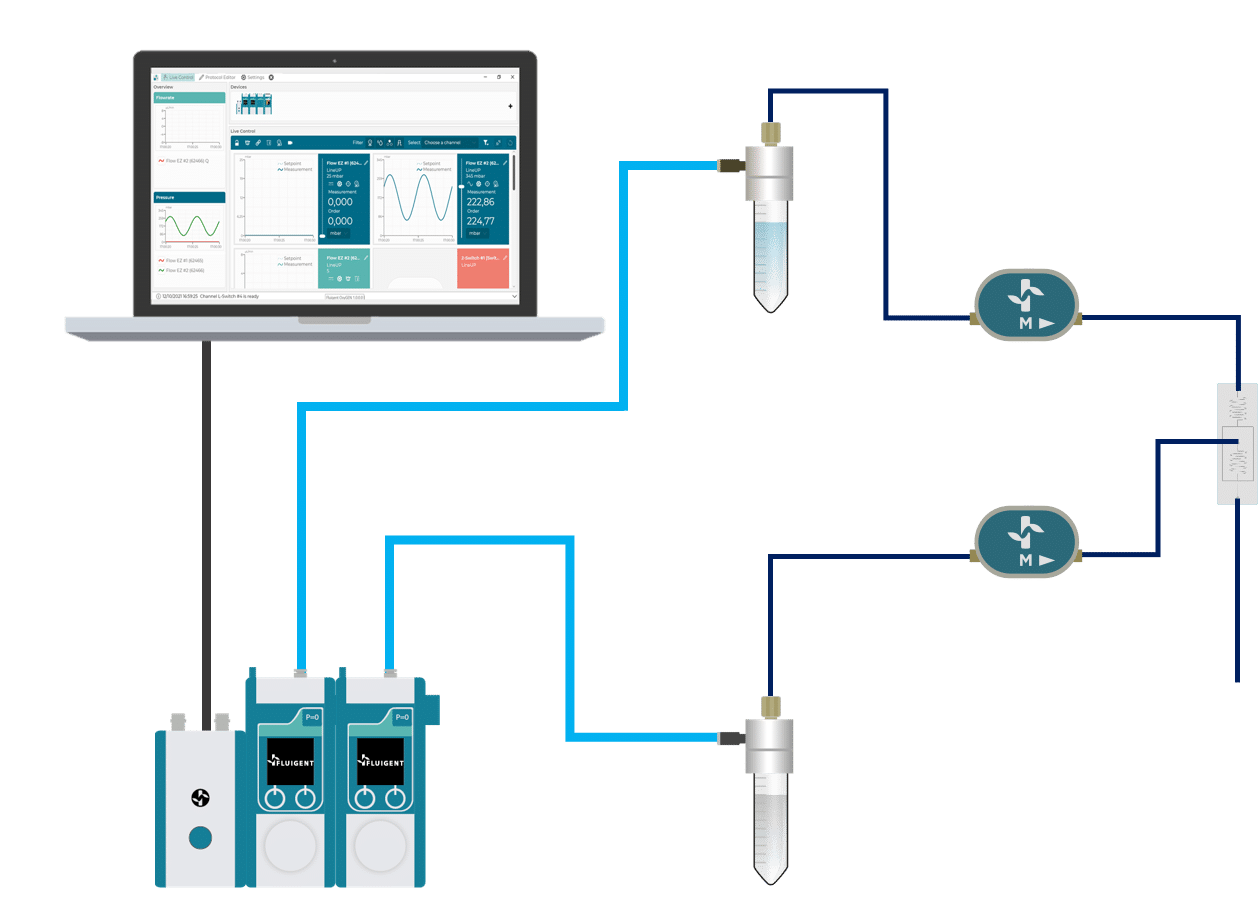

The Droplet Starter Pack includes

  • 2 Flow EZ™ for both phases
  • 2 FLOW UNITS for both phases
  • 2 Flow EZ™ supply Kits
  • 2 P-CAP 2 mL for both phases
  • 1 Droplet Kit
    • 3 EZ Drop chips (with 3 microfluidic droplet generators each)
    • 2m 1/32” tubing
    • 2 sleeves
  • 1 LQ Kit
  • 1 P-CAP Kit
  • 1 Tube Cutter
droplet-chip
  • Fluigent All-in-One compatible
  • Local control possible with the Flow EZ™ modules
LineUP series pressure flow rate control

P/N= Droppack01

icon questions

ANY QUESTIONS?

Of course, the chips can be ordered separately from the whole Droplet Starter Pack. We invite you to get in touch with our sales representatives or with your local distributor.

Back to FAQs

Yes, the size market at the nozzle are here to help you estimate the size of the droplets you are generating. The Droplet Starter Pack has been designed to have very stable flow-rates, as the microfluidic resistance is mainly within the chip. This means that the flow-rates will stay stable even with pressure control only, thus the droplet sizes.
