Microfluidic Complex Emulsion Platform

[O-DE-STD-PTF]

    A ready-to-use platform for all types of emulsions and droplets

    The complex emulsion platform, develop by Secoya, with our flow control equipment, is a fast and easy screening system perform emulsification processes such as single emulsions and double emulsions.

    Save time with an integrated, organized, ready to use platform and get monodispersed complex emulsions rapidly.

    Complex emulsion platform for double and single emulsion in microfluidics developed by Secoya
    Main benefits
    • Easy

      Ready-to-use system

    • droplet monodispersity
      High precision
      Down to 2% monodispersity
    • ICO_BFT size
      Flexible

      All types of emulsions, adjustable shell thickness

    • ICO_BFT continuous
      Robust
      Continuous production

    Features of the complex emulsion platform

    Start emulsions production right away

    The system is a fully equipped, mounted and controlled tool to setup complex emulsion, microparticle and microcapsules production processes.

    An engineered system

    Simplified handling with an organized system. Easy priming and cleaning processes for better robustness. Dedicated optics for optimized droplet visualization at high frequency, and holder for air bubble troubleshooting.

    Fluigent precision

    Production of robust and highly monodisperse emulsions using Fluigent pressure-based flow controllers and the Raydrop.

    double emulsion chip

    Developed and manufactured by Secoya

    Complex Emulsion Platform: Description

    The system includes an organized flow path with pressure controllers, filters, flowmeters, and valves to facilitate start-up, shut-down, and cleaning of the system between runs. Dedicated optics are included to optimise the visualisation of droplet production at high generation frequency.

    New platform for complex emulsion generation – Recorded Workshop

    You are looking for mprove performance in generating the right droplet based emulsion type for your needs, this online workshop may be of benefit to you.

    • Learn how to generate droplet based emulsions from simple single droplet to complex
    • Discover an inclusive emulsification platform which combines fluid handling, microfluidic emulsion generator and optical monitoring system
    • Have live discussions with our experts regarding your specific application
    • Gain familiarity with the newest materials and methods for the generation of highly monodispersed emulsions

    Polymerization of microfluidics-produced liquid crystal double emulsions – Recorded Webinar

    𝗣𝗼𝗹𝘆𝗺𝗲𝗿𝗶𝘇𝗮𝘁𝗶𝗼𝗻 𝗼𝗳 𝗺𝗶𝗰𝗿𝗼𝗳𝗹𝘂𝗶𝗱𝗶𝗰𝘀-𝗽𝗿𝗼𝗱𝘂𝗰𝗲𝗱 𝗹𝗶𝗾𝘂𝗶𝗱 𝗰𝗿𝘆𝘀𝘁𝗮𝗹 𝗱𝗼𝘂𝗯𝗹𝗲 𝗲𝗺𝘂𝗹𝘀𝗶𝗼𝗻𝘀 𝗳𝗼𝗿 𝗺𝗮𝗸𝗶𝗻𝗴 𝘄𝗮𝘃𝗲𝗹𝗲𝗻𝗴𝘁𝗵 𝗮𝗻𝗱 𝗽𝗼𝗹𝗮𝗿𝗶𝘇𝗮𝘁𝗶𝗼𝗻-𝘀𝗲𝗹𝗲𝗰𝘁𝗶𝘃𝗲 𝗿𝗲𝘁𝗿𝗼𝗿𝗲𝗳𝗹𝗲𝗰𝘁𝗼𝗿𝘀.

    By combining the exquisite control of microfluidic double emulsion production with the self-assembly of liquid crystals, spherical shells with peculiar optical properties can be produced at high throughput and excellent reproducibility.
    In this webinar by the Experimental Soft Matter Physics (ESMP) group at the University of Luxembourg in collaboration with Fluigent, we will demonstrate, first, that the liquid crystal shells form a rich and intriguing platform for innovative photonics research.

    The Complex Emulsion platform is dedicated to droplet (single and double emulsion), microparticle and microcapsule production for encapsulation of Active Pharmaceutical Ingredients or other reagents inside different materials such as polymer (PLGA, UV polymerized materials ) Hydrogels and more…

    An engineered system

    Simplified handling with an organized system. Easy priming and cleaning processes for better robustness. Dedicated optics for optimized droplet visualization at high frequency, and holder for air bubble troubleshooting.

    Fluigent precision

    Production of robust and highly monodisperse emulsions using Fluigent pressure-based flow controllers and the Raydrop.

    water in oil emulsion
    Water in Oil

    What can be performed with the Complex Emulsion Platform?

    Controlling the droplet generation process is one of the important and central topics of microfluidics. As microfluidics remains a brand new topic it can be hard to handle and get used to compared to other well known technologies (batch method ). There is a clear need for an easy to use platform that is capable of producing droplets in a controlled manner, with high reproducibility and accuracy.

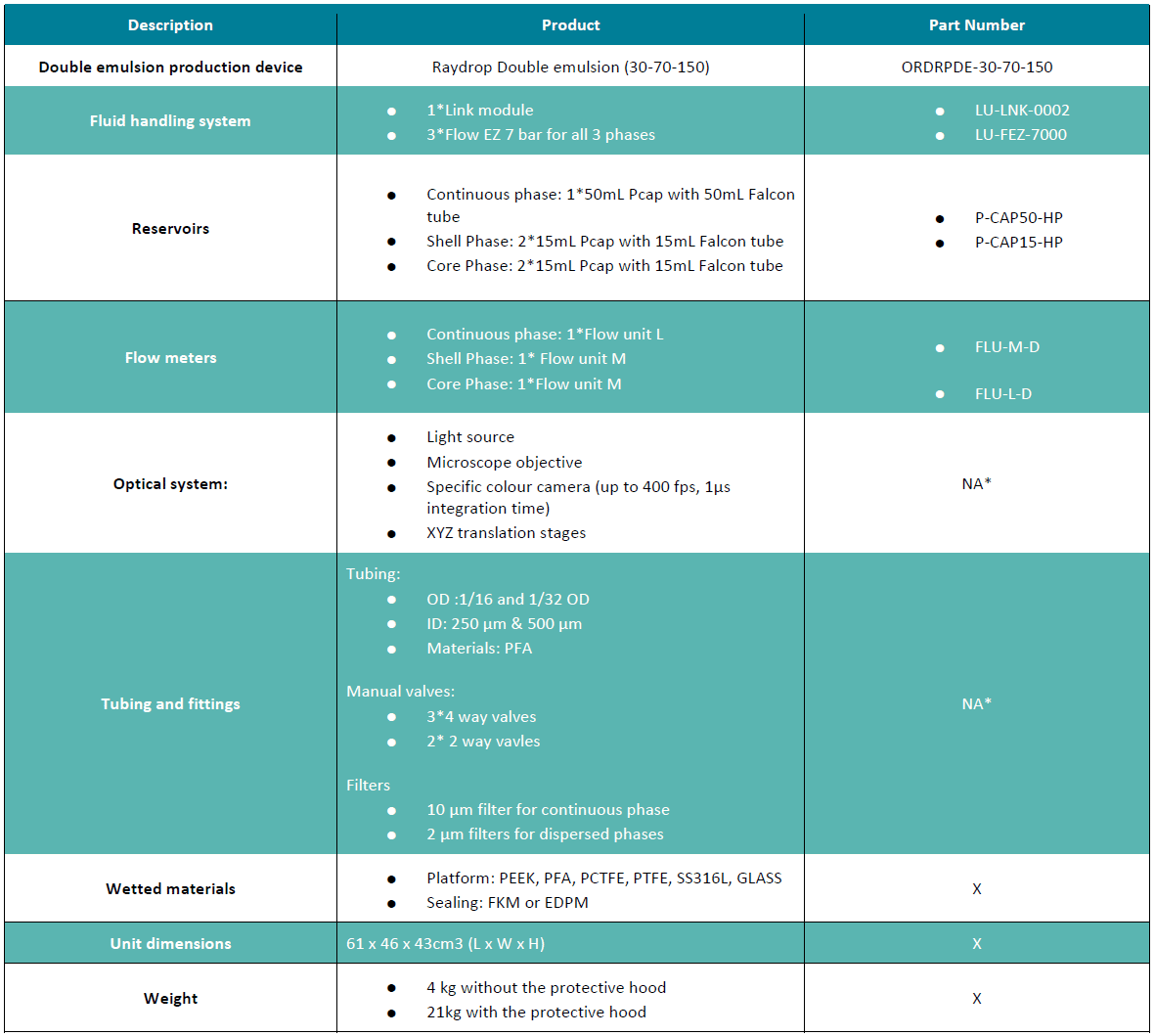

    Specifications

    complex emulsion specification

    OxyGEN

    Control in real-time, protocol automation, data record and export
    ver. 1.0.0.0 or more recent

    See the offer


    Software Development Kit

    Custom software application
    ver. 21.0.0.0 or more recent

    See the offer

    What is the difference between the Double Emulsions Production Station and the Complex Emulsion Platform?

    Double emulsion production station

    double emulsion platform
    • Production of either W/O/W or O/W/O double emulsion
    • For microcapsules production additional component needs to be added
    • Suited for a microfluidic user or scientist who wants to build their own setup

    Complex emulsion production platform

    complex emulsion production platform fluigent
    • An integrated system for non-microfluidic users and scientists who don’t want to spend time on system design
    • Everything is ready to use for various type of Liquid double emulsions and Microparticle generation
